YH Hydraulic Fittings
Click here to send e-mail!
-
Part no.: 30442(45°Metric Female 24°Cone L.T. With O-ring DIN3865 For Spiral Hose; Crimped Type)
Hose types: one or two wire braided hydraulic hoses like R1AT, R2AT, 1SN, 2SN, R17, etc.. Spiral hose like 4SP. 4SH, R12, etc.
Ferrule types: 00400 ferrules
MOQ: require 300pcs each item if few in stock
Color option: yellow, white or nickel(popular ones)
-

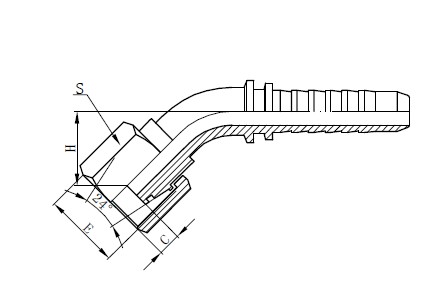

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
H
30442-22-08
M22X1.5
12
08
15
3
27
33.3
30442-27-10
M27X1.5
16
10
18
2.5
32
35
30442-30-12
M30X2
20
12
22
3.5
36
42
30442-36-14
M36X2
22
14
28
4.5
41
34
30442-36-16
M36X2
25
16
28
4.5
41
42.5
30442-45-20
M45X2
32
20
35
5
55
43.5
30442-52-24
M52X2
40
24
42
6
60
45.5
