Swaged Hose Fitting
20611 hose fittings are metric female 60°cone crimped type which sizes are available from M14 t M27. Hydraulic hose fittings are widely used in the connection of machines. So we are offering a comprehensive line of hydraulic fittings. Our production includes complete thread types and sizes for different hydraulic hoses.
Click here to send e-mail!
-
Part no.: 20611(Metric Female 60°Cone Crimped Type)
Brand name: YH; others are available
Package details: Nylon plastic; corrugated carton; multiple plywood case
Custom-orientated service: produce according to drawings or samples provided, offer custom-design
Advantage: 1. High quality 2. Rich inventory 3. Prompt delivery 4. Reasonable price 5. Best service
-

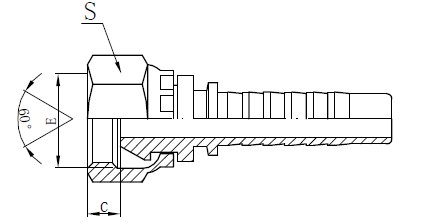

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
S
20611-14-05
M14x1.5
8
05
6.5
19
20611-16-06
M16x1.5
10
06
7
22
20611-18-08
M18x1.5
12
08
7.5
24
20611-22-10
M22X1.5
16
10
7.5
27
20611-24-10
M24X1.5
16
10
9
30
20611-27-12
M27X1.5
20
12
8
32
