Industrial Hydraulic Fitting
30241 hose fittings are suitable for hose sizes from 3/8’’ to 2’’. 30241 fittings are 45 degrees GB metric female flat seat types which are popularly produced and sold in YH Hydraulic. Complete thread types are included in our daily production. Please visit our website then email to us with your detailed product requirements.
Click here to send e-mail!
-
Part no.: 30241(45°GB Metric Female Flat Seat)
Material: carbon steel, stainless steel, brass
Surface treatment: zinc plated, chrome plated, nickel plated, etc
After sales service: we guarantee the good quality provided; available
Certificate: ISO9001:2008
-

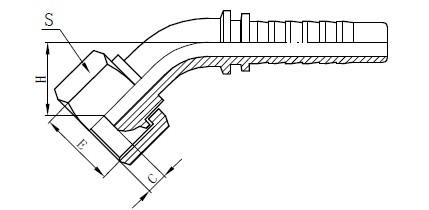

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
S
H
30241-18-06
M18X1.5
10
06
8.5
22
13.5
30241-22-08
M22X1.5
12
08
10
27
13.5
30241-27-10
M27X1.5
16
10
10.5
32
26
30241-30-12
M30X1.5
20
12
11.5
36
30.1
30241-36-14
M36X2
22
14
13
41
27.2
30241-36-16
M36X2
25
16
13
41
30.5
30241-39-16
M39X2
25
16
13
46
30
30241-45-20
M45X2
32
20
15
55
34.8
30241-52-24
M52X2
40
24
17
60
38
30241-64-32
M64X2
50
32
23
75
46.9
