JIS Female Hose Fitting

28611 JIS female fittings are with 30 degrees seat and double hexagon. Complete process of fitting producing can be visited in YH Hydraulic from raw material cutting to finial packing. YH fittings are of smooth surface without burs and impurities. Fittings are checked four times by our inspectors.

Click here to send e-mail!

  See more pictures

  Brochure Download (PDF)

Details

Technical Data Table

Part no.: 28611(JIS Metric Female 60 Degrees Seat With Double Hexagon)

Threads: JIS, JIC, Metric, BSP, BSPT, NPT(female and male)

Sizes: from 04 to 24 (for most hoses)

Type: Straight, 45 Degrees Elbow, 90 Degrees Elbow

Custom-orientated service: produce according to drawings or samples provided

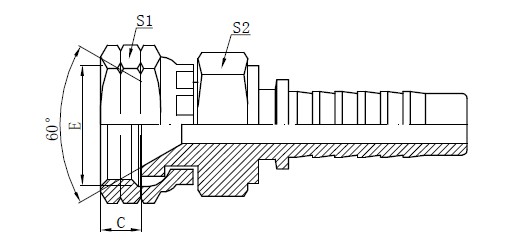

Drawing

Technical Data Table
