  • Part no.: 00110



    Name: Swaged Ferrule For SAE R1AT Hose



    Usage: Components for hose assemblies



    Standards: Winner Standard(welcome other standards or customer drawings)

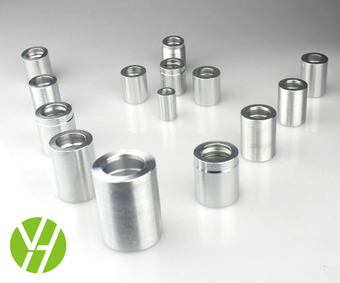

    1. Pictures for Non-skive Hydraulic Hose Sleeves, hose ferrules, hose sleeves, hose collars







    2. Different models of hose ferrules for your choice

      Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100

      Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200

      Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310

      Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400

      Ferrules for SAE 100R7/R8 hoses: 00018

    (See details on YH catalog)



    3. Raw Material

      20 carbon steel  316 stainless steel  304 stainless steel



    4. Flow chat

      YH Hydraulic has rich experiences in Non-skive Hydraulic Hose Sleeves production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.

      Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing



    5. Coating Options

      White zinc plated   Yellow zinc plated   Cr3 plated





    6. Delivery

      The ferrules are possible to be packed in wooden cases after putting in cartons with plastic firm wrapped.















    7. Products Application









  • Drawing



    Technical Data

    代号

    PART NO.

    胶管 HOSE BORE

    尺寸 DIMENSIONS

    公称内径 DN

    标 号 DASH

    D

    L

    00110-04

    6

    04

    19

    30

    00110-05

    8

    05

    20.5

    32

    00110-06

    10

    06

    23.2

    32

    00110-08

    12

    08

    27

    35.3

    00110-10

    16

    10

    30.5

    38

    00110-12

    20

    12

    34

    44.2

    00110-14

    22

    14

    37

    45

    00110-16

    25

    16

    42.6

    52

    00110-20

    32

    20

    50.8

    57

    00110-24

    40

    24

    58

    60

    00110-32

    50

    32

    72

    75
