DKOL Hose Fitting
20441 fittings are 45 degrees metric female 24 degrees cone with o-ring which is based on DIN3853 standard. 20441 fittings are not only light type but also crimped type. 20441 fittings are made from carbon steels which are available for 45 carbon steel or 20 carbon steel. Raw materials are put into production by CNC machines after cut.
-
Part no.: 20441(45°Metric Female 24°Cone L.T. With O-ring DIN3853; Crimped Type)
Sizes: thread types are from M12 to M27 available; hose sizes are from 1/4’’ to 3/4’’ are available. Others please check 30441 or advise us.
MOQ policy: no limit for stock products; require 300PCS each for items.
Delivery time: less than 50 days for one order no matter big or small; delivery time can be discussed.
Payment term: 30% TT in advance; 70% TT before shipment; as invoice said.
-

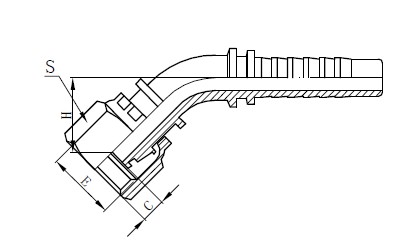

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
H
20441-12-04
M12X1.5
6
04
6
2
17
24.3
20441-14-05
M14X1.5
8
05
8
3.5
19
28.3
20441-12-06
M12X1.5
10
06
6
2
17
28.3
20441-14-06
M14X1.5
10
06
8
3.5
19
29.3
20441-16-06
M16X1.5
10
06
10
3.5
22
29.4
20441-18-08
M18X1.5
12
08
12
3.5
24
33
20441-22-10
M22X1.5
16
10
15
2.5
27
35
20441-26-12
M26X1.5
20
12
18
2.5
32
37.5
20441-27-12
M27X1.5
20
12
18
2.5
32
38.5
