JB Metric Male Fittings
10211 series are JB metric male thread with o-ring seal face. 10211 series fittings are suitable for one or two steel wire braided hoses. To be equipped with spiral hoses, 10212 series fittings are your right choice. YH insists on providing customers with best material quality and well manufactured fittings. Also we provide reliable service to potential and cooperated customers.
Click here to send e-mail!
-
Part no.: 10211(JB Metric Male O-ring Seal)
Advantage: Perfect surface; smoothness without burrs and impurities
Sizes: Different fittings sizes apply to related hydraulic hoses
Quality: based on Winner(Eaton) standard; best quality material; well packed; ISO certificated
Samples policy: free samples can be tested for quality
Other items: can be found in “Brochure Download(PDF)” button
-

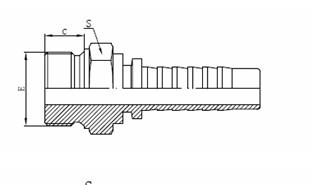

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
10211-14-04
M14X1.5
6
04
11
17
10211-16-05
M16X1.5
8
05
11
19
10211-18-06
M18X1.5
10
06
11
22
10211-22-08
M22X1.5
12
08
12
27
10211-27-10
M27X1.5
16
10
13
32
10211-30-12
M30X1.5
20
12
14
36
10211-36-14
M36X2
22
14
16
41
10211-39-16
M39X2
25
16
18
46
10211-45-20
M45X2
32
20
20
55
10211-52-24
M52X2
40
24
22
60
