Straight DKOS Nipple
20511 fittings are metric female 24 degrees cone heavy type with o-ring which are based on DIN3865 standard. 20511 fittings are crimped types compared with 30511 fittings. 20511 fittings are available for hoses from 1/4’’ to 2’’. Regarding to crimped types, it is based on customers’ demands. Our production is ok with both types.
Click here to send e-mail!
-
Part no.: 20511(Metric Female 24°Cone H.T. With O-ring DIN3865: Crimped Type)
Related items: 30511(non-crimped type); 20541(45 degrees elbow); 20591(90 degrees elbow); 20512(special for spiral hose)
Color options: white, yellow, nickel, colorful
Coating: white zinc plated, yellow zinc plated, nickel plated
Delivery time: less than 45 days for one big order
-

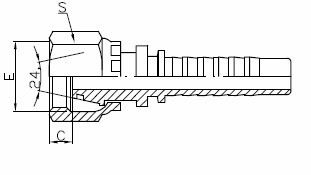

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
20511-14-06
M14X1.5
10
06
6
3.5
19
20511-16-06
M16X1.5
10
06
8
3.5
22
20511-20-08
M20X1.5
12
08
12
3
27
20511-22-10
M22X1.5
16
10
14
2.5
27
20511-24-10
M24X1.5
16
10
16
3.5
30
20511-42-20
M42X2
32
20
30
5.5
30
