Komatsu Elbow Female Fittings
28691 series fittings are 90 degrees JIS metric female 60 degrees cone seat. General speaking, 28691 fittings are finished with double hex. But they can also be with single hex to customers demands because it can cut material costing so that selling prices are more competitive. Sizes from 04 to 24 are popularly produced in our factory.
Click here to send e-mail!
-
Part no.: 28691(90°JIS Metric Female 60°Cone Seat)
Type: Single nut or double hex both available in our factory
Material: carbon steel; stainless steel
Coating: white zinc-plated; yellow zinc-plated; chrome plated(silver)
Prices: prices quoted are based on our MOQ demands(300PCS one item)Origin: Ningbo, China
-

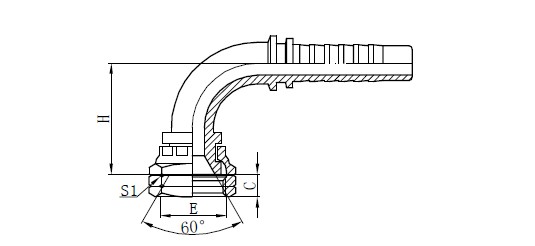

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
28691-14-04
M14X1.5
6
04
12
19
38.2
28691-16-05
M16X1.5
8
05
9.5
22
44
28691-18-06
M18X1.5
10
06
11
24
46.4
28691-22-08
M22X1.5
12
08
14
27
52.5
28691-24-10
M24X1.5
16
10
13.5
32
59
28691-30-12
M30X1.5
22
12
20
36
68.5
28691-33-16
M33X1.5
25
16
20.5
41
76
28691-36-20
M36X1.5
32
20
20.5
46
90
28691-42-24
M42X1.5
40
24
18.5
55
103
