Komatsu Hydraulic Fittings
30611 hose fittings are metric female 60 degrees cone which are non-crimped types. Crimped types 20611 are also offered in YH Hydraulic. Please refer to catalog attached which provides details of fittings sizes. 30611 fittings are popularly manufactured in our factory. We provide good quality, reasonable prices and fast delivery to customers.
Click here to send e-mail!
-
Part no.: 30611(Metric Female 60°Cone; Non-crimped type)
Hose type: one wire braided hydraulic hose such as R1AT, 1SN, etc. two wire braided hydraulic hose such as R2AT, R2A, 2SN, etc
Hose tail sizes: from 1/4’’ to 2’’ available
Ferrule types: 00210, 00110, 03310 available.
Stock condition: most sizes are kept in stock to shorten delivery time.
-

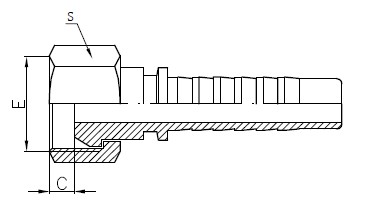

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30611-14-04
M14x1.5
6
04
5.5
17
30611-16-05
M16x1.5
8
05
5.5
19
30611-18-06
M18x1.5
10
06
6.5
22
30611-22-08
M22x1.5
12
08
7.5
27
30611-27-10
M27X1.5
16
10
9.5
30
30611-30-12
M30X1.5
20
12
8.5
32
30611-39-16
M39X1.5
25
16
10
46
30611-45-20
M45X1.5
32
20
11
55
30611-52-24
M52X1.5
40
24
12
60
30611-64-32
M64X1.5
50
32
15
75
