74 Degrees Hose Fitting
30711 hose fittings are GB metric female 74 degrees cone seat which are popular in machine inner connections. 30711 fitting sizes are suitable for one or two wire braided hydraulic hoses which sizes can be from 1/4’’ to 2’’. 30711 metric fittings are plated with zinc before package to protect from oxidation.
Click here to send e-mail!
-
Part no.: 30711(GB Metric Female 74°Cone Seat)
Ferrule types: 00110; 00210; 03310
Suitable hose sizes: from 1/4’’ to 2’’
OEM service: we are capable to design or produce with customers’ requirements, samples, or drawings.
Color options: white, yellow, nickel, colorful, etc.
-

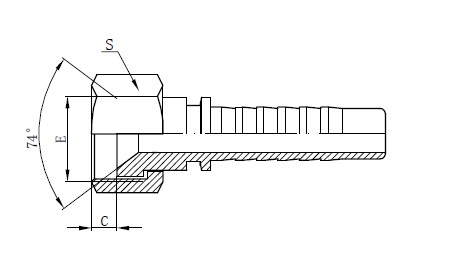

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30711-14-04
M14X1.5
6
04
8
17
30711-16-05
M16X1.5
8
05
8
19
30711-18-06
M18X1.5
10
06
8.5
22
30711-22-08
M22X1.5
12
08
10
27
30711-27-10
M27X1.5
16
10
10.5
32
30711-30-12
M30X1.5
20
12
11.5
36
30711-36-14
M36X2
22
14
13
41
30711-39-16
M39X2
25
16
13
46
30711-45-20
M45X2
32
20
15
55
30711-52-24
M52X2
40
24
17
60
30711-64-32
M64X2
50
32
23
75
