Hydraulic Hose Fittings
10511 fittings are metric male 24°cone seat heavy type DIN3853. 10511 fittings from YH Hydraulic are a highly respected quality products that provides a long product life cycle which saves a customer on replacement parts and labor. YH Hydraulic offers a comprehensive range of hydraulic fittings in carbon and stainless steel.
Click here to send e-mail!
-
Part no.: 10511(Metric Male 24°Cone Seat H.T.DIN3853)
Sizes: from M14 to M52; hose available from 1/4’’ to 1.1/2’’
Coating: zinc plated; nickel plated; chrome plated; customer required coating available.
OEM service: available with samples or drawings presented; design products as customers’ demands.
Delivery time: less than for 30 days for an order big or small
Currency: USD, RMB, EURO, cash
-

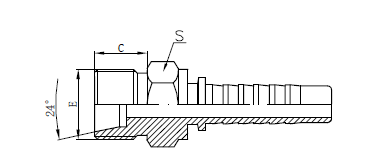

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE O.D.
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
10511-14-04
M14X1.5
6
04
8
13
17
10511-16-04
M16x1.5
6
04
8
13.5
17
10511-18-04
M18x1.5
6
04
10
13.5
19
10511-18-05
M18x1.5
8
05
12
13.5
22
10511-20-05
M20x1.5
8
05
12
13.5
22
10511-18-06
M18x1.5
10
06
12
13.5
22
10511-20-06
M20x1.5
10
06
12
13.5
22
10511-22-08
M22x1.5
12
08
16
14
24
10511-24-08
M24x1.5
12
08
16
14
27
10511-30-10
M30X2
16
10
20
19
32
10511-30-12
M30X2
20
12
20
19
32
10511-36-16
M36X2
25
16
25
20
38
10511-42-20
M42X2
32
20
30
20
46
10511-52-24
M52X2
40
24
38
22
55
