  • Part no.: 20491(90°Metric Female 24°Cone L.T. With O-ring DIN3853: Crimp Type)


    Sizes: thread sizes are from M12 to M27; Suitable hose sizes are from 04 to 12; other sizes are also available


    Material: 45 Carbon Steel; Mild Steel; Stainless Steel; Brass; etc


    Prices: prices quoted are based on items and quantities; but we will try to offer the best prices for each enquiry as we can


    Delivery Port: Ningbo(nearest); Shanghai; Guangzhou


    Samples: less than 5pcs is free of charge for checking the quality

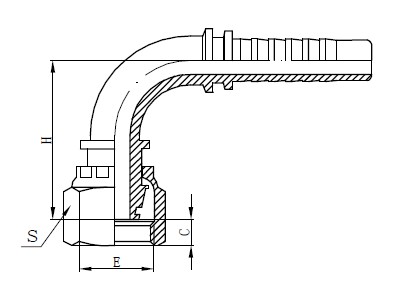

  • Drawing



    Technical Data Table

        代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    管子外径

    TUBE.O.D

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    S

    H

    20491-12-04

    M12X1.5

    6

    04

    6

    2

    17

    44.3

    20491-14-05

    M14X1.5

    8

    05

    8

    3.5

    19

    49.3

    20491-12-06

    M12X1.5

    10

    06

    6

    2

    17

    48.3

    20491-14-06

    M14X1.5

    10

    06

    8

    3.5

    19

    52.3

    20491-16-06

    M16X1.5

    10

    06

    10

    3.5

    22

    52.4

    20491-18-08

    M18X1.5

    12

    08

    12

    3.5

    24

    60

    20491-22-10

    M22X1.5

    16

    10

    15

    2.5

    27

    67

    20491-26-12

    M26X1.5

    20

    12

    18

    2.5

    32

    77.5

    20491-27-12

    M27X1.5

    20

    12

    18

    2.5

    32

    78.5
