DKOS Female Fittings
Part no. 30512 is metric female 24 degrees cone heavy type with o-ring non-crimped fittings for spiral hoses. The related fittings are 20512 series which are crimped types but their application is same. 30512 fittings are produced with smooth surface finish and required coating. Popular coatings are acceptable like zinc-plated and chrome plated.
Click here to send e-mail!
-
Part no.: 30512(Metric female 24 degrees cone heavy type with o-ring for spiral hose; non-crimp type)
Types: Straight; 45 degrees elbow; 90 degrees elbow
Related products: 03310 ferrules are suitable for 30512 fittings; One or two steel wire braided hydraulic hoses
Stock: many sizes of 30512 series are kept as stock products
Samples: less than 5pcs is free of charge; re-produced items can be used as samples but it needs production time
Custom-orientated service: it is available if samples, drawings, or requirements are provided
-

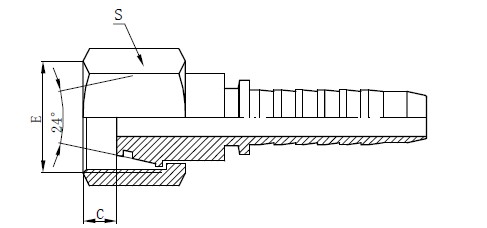

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30512-24-08
M24X1.5
12
08
16
3
30
30512-30-10
M30X2
16
10
20
3.5
36
30512-30-12
M30X2
20
12
20
3.5
36
30512-36-16
M36X2
25
16
25
3
41
30512-42-16
M42X2
25
16
30
5
50
30512-52-20
M52X2
32
20
38
6.5
60
30512-52-24
M52X2
40
24
38
6.5
60
