30 Degrees Hose Fittings
Click here to send e-mail!
-
Part no.: 20231(30°GB Metric Female Flat Seat)
Related items: 20241(45 degrees elbow); 20291(90 degrees elbow); 20211(Straight)
Advantage: Smooth surface finish; required tolerance; Good quality control; Problem solution service
Shipping term: CIF(customer required port); FOB(Ningbo); FCA; CFR(customer required port)
OEM service: available
-

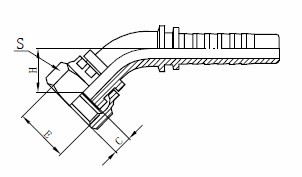

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
H
S
20231-14-04
M14X1.5
6
04
9
18.8
19
20231-16-05
M16X1.5
8
05
9.5
20
22
20231-18-06
M18X1.5
10
06
9.5
21.4
24
20231-22-08
M22X1.5
12
08
9.5
24.2
27
20231-27-10
M27X1.5
16
10
10.5
26.8
32
20231-30-12
M30X1.5
20
12
12.5
30
36
20231-39-16
M39X2
25
16
13.5
31
46
20231-45-20
M45X2
32
20
15.5
36.5
55
20231-52-24
M52X2
40
24
17.5
36.5
60
