Straight DKOL Nipples
20411 fittings are metric female 24 degrees cone light type with o-ring which are based on DIN3853 standard. 20411 fittings are crimped types compared with 30411 fittings. Hose fittings from YH Hydraulic are of perfect quality and cost control. YH insist on offering customers with good quality and reasonable prices.
Click here to send e-mail!
-
Part no.: 20411(Metric Female 24°Cone L.T. With O-ring DIN3853; Crimped Type)
Thread types: metric, JIS, BSP, BSPT, ORFS, NPT, JIC, NPSM, etc.
Application: machinery, transportation, mines, oil fields, agriculture, vehicle, heavy industry, etc.
Surface treatment: yellow zinc plated, white zinc plated, nickel plated, chrome plated, etc.
Delivery time: less than 10 days for 20411 fittings as we have kept a big quantities in stock.
-

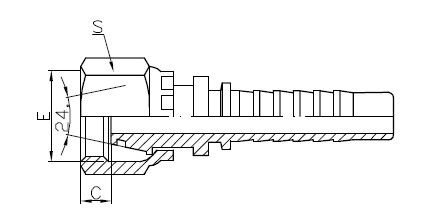

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
20411-12-04
M12x1.25
6
04
6
2
17
20411-14-05
M14x1.5
8
05
8
3.5
19
20411-12-06
M12x1.25
10
06
6
2
17
20411-14-06
M14x1.5
10
06
8
3.5
19
20411-16-06
M16x1.5
10
06
10
3.5
22
20411-18-08
M18X1.5
12
08
12
3.5
24
20411-22-10
M22X1.5
16
10
15
2.5
27
20411-26-12
M26X1.5
20
12
18
2.5
32
20411-27-12
M27X1.5
20
12
18
2.5
32
