BSP One Piece Fitting
22611one piece fittings consist British thread type fittings and one piece fitting ferrule designed. Popular sizes are largely manufactured in YH factory and welcomed by customers over the world. Fittings and ferrules are all finished by CNC machines then crimped together. Similar integral fittings are available for selling which can be found from our e-catalog.
Click here to send e-mail!
-
Part no.: 22611one piece(BSP Female 60 Degrees Cone Integral Fitting)
Thread types: Metric, BSP, BSPT, JIC, ORFS, JIS, etc.
Features: high degree of smooth surface; clean without burr inside; no leaking when put into use
Products are 100% inspected on dimensions before package
Brand: YH(no or other brands are ok if certificate of authorization provided)
-

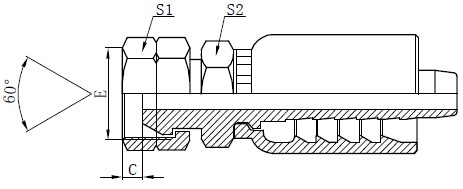

Drawing
Technical Data
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
22611-04-04 one piece
G1/4"X19
6
04
5.5
17
17
22611-06-04 one piece
G3/8"X19
6
04
6
22
17
22611-06-06 one piece
G3/8"X19
10
06
6
22
19
22611-08-08 one piece
G1/2"X14
12
08
7
27
22
22611-10-08 one piece
G5/8"X14
12
08
8.5
27
22
22611-12-12 one piece
G3/4"X14
20
12
9
32
32
22611-16-16 one piece
G1"X11
25
16
11
38
38
22611-20-20 one piece
G1.1/4"X11
32
20
11
50
50
22611-24-24 one piece
G1.1/2"X11
40
24
12
55
55
