Steel Hydraulic Fittings
Item 30511 is metric thread female 24 degrees cone heavy type with o-ring face. It is a non-crimped fitting type. Relevant type is 20511 which is crimped fitting. 30511 fittings are standard to Winner production which is a worldwide brand. Fittings from YH Hydraulic can be used in different machines such as mining machine, hydraulic machines, tracks, etc.
Click here to send e-mail!
-
Part no.: 30511(Metric Female 24 °Cone H.T. with O-ring DIN3853 Non-crimp type)
Thread types: Metric; Komatsu metric; BSP; JIC; NPT.(main threads types involved)
Material: Brass; Carbon steel; Stainless Steel
MOQ: stock products have no MOQ demands. New produced items need MOQ to cut the costing
Stock: sizes of 30511 are mostly available for stock
Samples: stock products are for samples mostly. New produced items needs days and charge
-

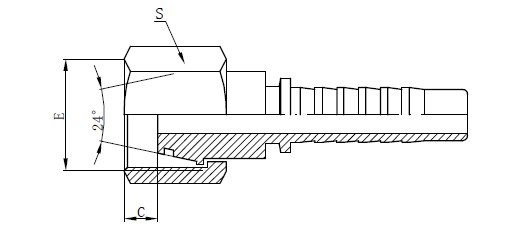

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30511-14-04
M14x1.5
6
04
6
2
17
30511-16-04
M16x1.5
6
04
8
2
19
30511-18-04
M18x1.5
6
04
10
2
22
30511-18-05
M18x1.5
8
05
10
2
22
30511-20-05
M20x1.5
8
05
12
3
24
30511-20-06
M20X1.5
10
06
12
3
24
30511-22-06
M22X1.5
10
06
14
3
27
30511-24-08
M24X1.5
12
08
16
3
30
30511-30-10
M30X2
16
10
20
3.4
36
30511-30-12
M30X2
20
12
20
3.5
36
30511-36-12
M36X2
20
12
25
3
41
30511-36-14
M362
22
14
25
3
41
30511-36-16
M36X2
25
16
25
3
41
30511-42-16
M42X2
25
16
30
5
50
30511-52-20
M52X2
32
20
38
6.5
60
30511-52-24
M52X2
40
24
38
6.5
60
