DIN3865 Female Fitting
YH Hydraulic offers a comprehensive line of metric fittings. Our fittings line contains a vast array of items always meeting the appropriate international standards. 30591 item is 90 degrees metric female thread 24 degrees cone heavy type with o-ring which is a non-crimp type. YH can produce non-cataloged fittings as your drawings or samples.
Click here to send e-mail!
-
Part no.: 30591(90°Metric Female 24°Cone H.T. with O-ring DIN3865 Non-crimp type)
Finish: smooth surface without burr; high degree of smooth finish; package well to protect from collision
Coating: zinc-plated(Galvanized); chrome plated(Cr3); Nickel plated
Package: carton size: 300mm*200mm*120mm; box size: 900mm*900mm*800mm(Standard ones)
Delivery: most parts are stock products can be delivered with 10 days
-

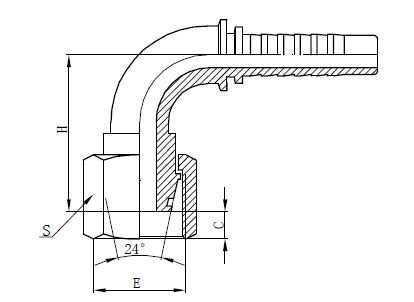

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
H
30591-18-04
M18X1.5
6
04
10
2
22
36
30591-20-05
M20X1.5
8
05
12
3
24
44
30591-22-06
M22X1.5
10
06
14
3
27
46.3
30591-24-08
M24X1.5
12
08
16
3
30
51
30591-30-10
M30X2
16
10
20
3.5
36
57.5
30591-36-12
M36X2
20
12
25
3
41
68
30591-42-16
M42X2
25
16
30
5
50
77.5
30591-52-20
M52X2
32
20
38
6.5
60
89
30591-52-24
M52X2
40
24
38
6.5
60
102.5
