Komatsu Male Hose Fittings
18611 series are JIS metric male 60 degrees cone seat which are based on Komatsu standard. Komatsu is a Japanese indigenous proper noun which means small pine tree. 18611 series fittings are popularly manufactured in YH Hydraulic that can meet most requirements from customers. 18611 fittings are finished with smooth surface, standard tolerance, and high precision.
Click here to send e-mail!
-
Part no.: 18611(JIS metric male 60 degrees cone seat)
Related Products: 28611(female type); 28641(female 45 degrees elbow); 28691(female 90 degrees elbow)
28611 suitable hoses: 1SN(R1) hose; 2SN(R2) hose; R16 hose; R17 hose; R12/4SH/R13 hoses; Pressure wash hose
MOQ policy: 300 to 500 pcs each items for re-produced types.
Samples: Less than 5pcs is free for checking our quality level.
-

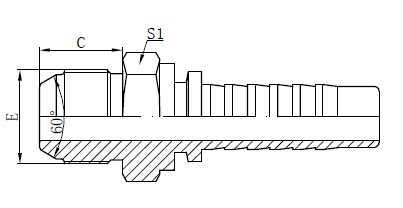

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
18611-14-04
M14X1.5
6
04
17
17
18611-16-05
M16X1.5
8
05
18
19
18611-18-06
M18X1.5
10
06
18
22
18611-22-08
M22X1.5
12
08
20
24
18611-24-10
M24X1.5
16
10
21.5
27
18611-30-12
M30X1.5
22
12
26
32
18611-33-16
M33X1.5
25
16
30
36
18611-36-20
M36X1.5
32
20
33
46
18611-42-24
M42X1.5
40
24
36
50
