Metric Multiseal Fitting
20111 fittings are metric female multi-seal types which are frequently manufactured in YH Hydraulic. 20111 types are widely used in hydraulic field and exported to Russia and Middle East mostly. Our fittings are of good quality and lower prices that can meet customers’ demands for higher quality widely. And we can provide OEM service with samples, drawings or requirements presented.
Click here to send e-mail!
-
Part no.: 20111(Metric Female Multiseal)
Sizes: we are providing a full range of specifications of 20111 fittings which are showed on technical table.
Image: image for 20111 fittings are only for reference. Please visit “Technical Data Table” to make sure 20111 fittings are your requirements.
Our advantage: Factory price; prompt delivery; quality ensured
MOQ: no limit for 20111 types.
-

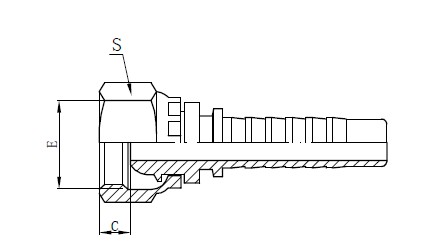

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径 DN
标 号DASH
C
S
20111-12-02
M12X1.25
4
02
5
17
20111-14-04
M14X1.5
6
04
5
19
20111-16-05
M16X1.5
8
05
6
22
20111-18-06
M18X1.5
10
06
5.5
24
20111-22-08
M22X1.5
12
08
5
27
20111-27-10
M27X1.5
16
10
4.5
32
20111-30-12
M30X1.5
20
12
5.5
36
20111-36-14
M36X2
22
14
5.5
41
20111-39-16
M39X2
25
16
5.5
46
20111-45-20
M45X2
32
20
6.5
55
20111-52-24
M52X2
40
24
5.5
60
