Spiral Hose Flange Fitting
Click here to send e-mail!
-
Part no.: 87642(45°SAE Flange 6000PSI For Spiral Hose)
Fitting Features: Corrosion resistance, good color and luster, high durability, high precision, high performance; easy installation
OEM service: available for samples or drawings producing; design with requirements presented.
Sizes: popular sizes are showed on technical data table; other sizes need your detailed demands.
Surface treatment: zinc plated; chrome plated; nickel plated; hot-dip galvanized
-

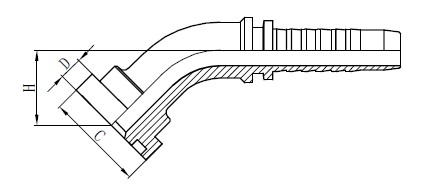

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87642-08-08
1/2"
12
08
31.8
23.9
7.9
24.7
87642-12-12
3/4"
20
12
41.3
31.7
8.9
31.8
87642-16-16
1"
25
16
47.6
38
9.6
34
87642-20-20
1.1/4"
32
20
54
43.6
10.4
39.4
87642-24-24
1.1/2"
40
24
63.5
50.8
12.7
45.5
87642-32-32
2"
50
32
79.4
66.5
12.7
52.7
