  • Part no.: 87313(SAE Flange 3000PSI For Interlock)


    Sizes: standard sizes are listed on technical data table. Our production is also available for other sizes


    Package details: fittings are packed in order in cartons covered with plastic bag film. Then put into boxes which are also covered with plastic bag film


    Shipping term: FOB(Ningbo, Shanghai, Guangzhou, etc); CIF(customers’ country port); etc.


    Nearest sea port: Beilun port which is located in Ningbo

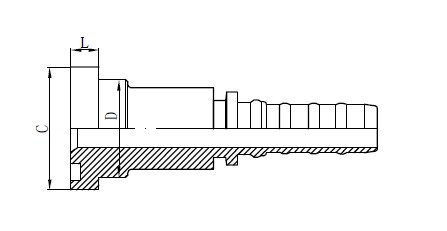

  • Drawing



    Technical Data Table

    代号

    PART NO.

    法兰尺寸

    FLANGE SIZE

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    D

    L

    87313-08-08

    1/2"

    12

    08

    30.2

    23.9

    7

    87313-12-12

    3/4"

    20

    12

    38.1

    31.7

    7

    87313-16-16

    1"

    25

    16

    44.4

    38

    8.2

    87313-20-20

    1.1/4"

    32

    20

    50.8

    43.2

    8.2

    87313-24-24

    1.1/2"

    40

    24

    60.3

    50.3

    8.2

    87313-32-32

    2"

    50

    32

    71.4

    62.2

    9.8
