JIS Flange Fittings
88112 is JIS flange fittings for spiral hose. JIS flange is a flange system made by Japan. This kind of flange include lots of specification like SOP, SPH, Blind flange, plate flange welded neck flange, etc. YH 88112 series fittings are suitable for all these flanges. And it can meet high pressure demands.
Click here to send e-mail!
-
Part no.:88112(JIS Flange Fitting For Spiral Hose)
Material: carbon steel; stainless steel; brass, others
Standard: Winner production standard; others are acceptable
Samples: less than 5pcs is free of charge according to stock condition; re-produced items need days to finish.
Delivery: Within 20 days for re-produced items of total order. FOB(Ningbo) and CIF(Customer’s port) are commonly accepted.
-

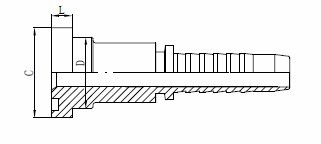

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
88112-10-10
5/8"
16
10
34.2
27.8
6.7
备注：表中型号也适用于编织软管
Remark: The part no inside the table is also suitable for braided hydraulic hoses
