SAE Interlock Flange Fitting
87643 fittings are special for 45 degrees SAE 6000PSI for interlock hose like SAE 100R15. Our SAE flange 6000PSI is good in quality and competitive in prices. We are offering OEM and ODM service according to your requirements. Please refer to our catalog attached on the website for details of popular fittings.
Click here to send e-mail!
-
Part no.: 87643(45°SAE Flange 6000PSI For Interlock)
Related items: 87641(for one or two steel wire braided hose); 87642(for one, two or for steel wire braided hose)
Surface treat: galvanized yellow zinc, black zinc, Cr6 free zinc, nickel
Sizes available: from 1/8’’ to 3’’
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.
-

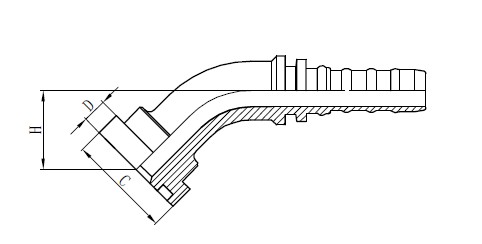

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87643-08-08
1/2"
12
08
31.8
23.9
7.9
24.7
87643-12-12
3/4"
20
12
41.3
31.7
8.9
31.8
87643-16-16
1"
25
16
47.6
38
9.6
34
87643-20-20
1.1/4"
32
20
54
43.6
10.4
39.4
87643-24-24
1.1/2"
40
24
63.5
50.8
12.7
45.5
87643-32-32
2"
50
32
79.4
66.5
12.7
52.7
