  • Part no.: 87913(SAE Flange 9000PSI For Interlock)


    Flange sizes available: 1/2’’ to 2’’; for other sizes, please contact us.


    Package Details: Nylon plastic+corrugated carton+multiple plywood case


    Materials: 45 carbon steels, 20 carbon steel, stainless steel, brass, alloy, etc.


    Our advantage: hydraulic quality; rich inventory; prompt delivery; reasonable price

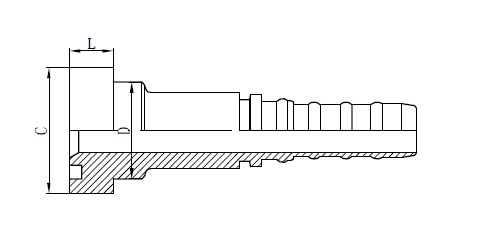

  • Drawing



    Technical Data Table

       代号

    PART NO.

    法兰尺寸

    FLANGE SIZE

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    D

    L

    87913-08-08

    1/2"

    12

    08

    31.8

    23.9

    14.3

    87913-12-12

    3/4"

    20

    12

    41.3

    31.7

    14.3

    87913-16-16

    1"

    25

    16

    47.6

    38

    14.3

    87913-20-20

    1.1/4"

    32

    20

    54

    43.6

    14.3

    87913-24-24

    1.1/2"

    40

    24

    63.5

    50.8

    14.3

    87913-32-32

    2"

    50

    32

    79.4

    66.5

    14.3
