SAE Flange Interlock Fittings
87993 flange fittings are SAE flange 9000PSI for interlock. Sizes from 08 to 32 are offered in YH Hydraulic. Flange fittings are coated with zinc commonly before put into package. As a professional manufacturer, YH control the quality and costing well for several years. So we can manufacture good quality flange fittings and sell at lower prices to customers.
Click here to send e-mail!
-
Part no.: 87993(90°SAE Flange 9000PSI For Interlock)
Brand: YH is our brand but for exporting products, we leave no mark on each product except customer required.
Delivery time: less than 10 days.
Package details: corrugated carton with nylon plastic covered, multiple plywood case
Custom-orientated service: produce according to drawings or samples offered
Advantage: Fast delivery time; professional in flange fittings production; quality controlled; reasonable prices
-

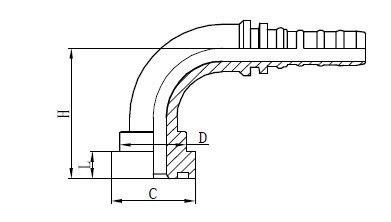

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87993-08-08
1/2"
12
08
31.8
23.9
14.3
40.5
87993-12-12
3/4"
20
12
41.3
31.7
14.3
71.5
87993-16-16
1"
25
16
47.6
38
14.3
78.5
87993-20-20
1.1/4"
32
20
54
43.6
14.3
90.5
87993-24-24
1.1/2"
40
24
63.5
50.8
14.3
105
87993-32-32
2"
50
32
79.4
66.5
14.3
124
