3000PSI Flange Special Fitting
87392-08-08H is instead of flange size half inch with 90 degrees SAE 3000PSI flange long drop fitting for spiral hoses. Its long drop sizes are according to customers’ demands. YH is involved in offering a wide range of these bend flange fittings with 90 degrees or 45 degrees mostly. Our prices for these fittings are reasonable and welcomed by customers over the world.
Click here to send e-mail!
-
Part no.: 87392-08-08H(90 degrees SAE 3000PSI Flange Long Drop Fittings For Spiral Hose; Flange Size 1/2’’)
Long Drop Size: H=100 and H=160 are showed in technical data table. But other sizes are acceptable.
Application: equipped with one or two steel wire braided hoses and spiral hoses
Color: Yellow; White; Silver(widely acceptable among our customers)
Material: Carbon Steel; Mild Steel; Stainless Steel; Brass
-

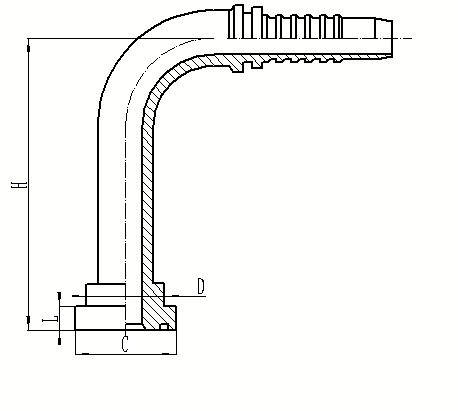

Drawing
Technical Data Table
PART NO.
FLANGE SIZE
HOSE BORE
DIMENSIONS
DN
DASH
C
D
L
H
87392-08-08 H=100
1/2"
12
08
30.2
23.9
7
100
87392-08-08 H=160
1/2"
12
08
30.2
23.9
7
160
