SAE 6000PSI Flange Connector
87613 fittings are SAE flange 6000PSI for interlock which are manufactured from 45 carbon steel. 87613 fittings are suitable for highest pressure demands hydraulic hoses. 87613 fittings can be chosen from 1/2’’ to 2’’ which are produced with CNC machines that can ensure the highest precision requirements.
Click here to send e-mail!
-
Part no.: 87613(SAE Flange 6000PSI For Interlock)
Advantage: Corrosion resistance, good color and luster, high durability, high precision, high performance, easy installation
OEM service: available for drawings or samples provided, also we can design as your requirements.
Samples: less than 5pcs is free of charge for checking the quality
Surface treatment: zinc plated, nickel plated, chrome plated, hot-dip galvanized
-

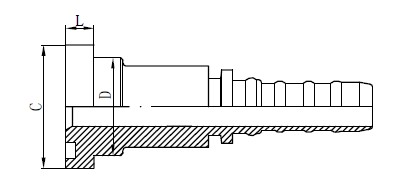

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87613-08-08
1/2"
12
08
31.8
23.9
7.9
87613-12-12
3/4"
20
12
41.3
31.7
8.9
87613-16-16
1"
25
16
47.6
38
9.6
87613-20-20
1.1/4"
32
20
54
43.6
10.4
87613-24-24
1.1/2"
40
24
63.5
50.8
12.7
87613-32-32
2"
50
32
79.4
66.5
12.7
