9000PSI Spiral Hose Fitting
87912 flange fittings are SAE flange 9000PSI for one wire, two wire and spiral hoses. Flange fittings have been put into the mass production for several years. So we have got the cheapest costing to manufacture complete sizes of flange fittings. Also very complete sizes are kept as stock products for your choose and fast delivery.
Click here to send e-mail!
-
Part no.: 87912(SAE Flange 9000PSI For Spiral Hose)
Materials: 45 carbon steel, stainless steel, etc.
Sizes: standard sizes are showed on technical data table; others as per customers’ requests.
Surface treatment: zinc plated, nickel plated, chrome plated, hot-dip galvanized, etc.
Payment term: 30% TT in advance, 70% TT before shipment; as invoice said
Prices term: available for FOB, CIF, CFR, Ex-work
-

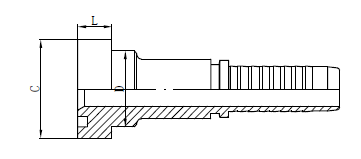

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87912-08-08
1/2"
12
08
31.8
23.9
14.3
87912-12-12
3/4"
20
12
41.3
31.7
14.3
87912-16-16
1"
25
16
47.6
38
14.3
87912-20-20
1.1/4"
32
20
54
43.6
14.3
87912-24-24
1.1/2"
40
24
63.5
50.8
14.3
87912-32-32
2"
50
32
79.4
66.5
14.3
