9000PSI Flange Fittings
87992 flange fittings are 90 degrees flange 9000PSI for both one(two) steel wire braided and spiral hoses based on SAE standard. 87992 fittings are for equipping with flanges. Flange fittings have three types that are straight, 45 degrees elbow and 90 degrees elbow. Flange fittings are CNC machine manufactured so that high precision is ensured.
Click here to send e-mail!
-
Part no.: 87992(90 Degrees SAE Flange 9000PSI For Spiral Hose)
Processing: raw material cutting; CNC machine producing; inspection; packing; delivering
Application: excavators; loaders; hydraulic machines; hydraulic tools; etc
Stock service: most items kept as stock products
Coating: zinc-plated; chrome plated; painting; nickel plated
-

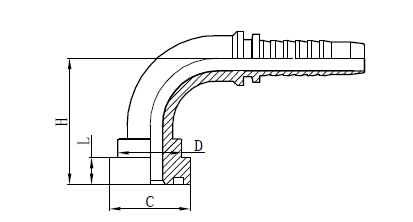

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87992-08-08
1/2"
12
08
31.8
23.9
14.3
40.5
87992-12-12
3/4"
20
12
41.3
31.7
14.3
69.3
87992-16-16
1"
25
16
47.6
38
14.3
80.7
87992-20-20
1.1/4"
32
20
54
43.6
14.3
91.8
87992-24-24
1.1/2"
40
24
63.5
50.8
14.3
104.6
87992-32-32
2"
50
32
79.4
66.5
14.3
124
