Carbon Steel Elbow Fittings
87692 flange fittings are 90°SAE flange 6000PSI for spiral hoses, one wire braided hoses, two wire braided hoses, etc. 87692 flange fittings are forged before put into precisely manufacture. 87692 fittings are available for hose sizes from 1/2’’ to 2’’. We can also produce other sizes as customers’ drawings or samples.
Click here to send e-mail!
-
Part no.: 87692(90°SAE Flange 6000PSI For Spiral Hose)
Related items: 87392(3000PSI); 87992(9000PSI); 87642(45 degrees elbow); 87612(Straight type)
Material: 45 carbon steel; Mild steel; stainless steel
Coating: zinc-plated(white, yellow, colorful); chrome-plated; nickel plated
Delivery time: less than 10 days because these items are in stock for a large quantity
-

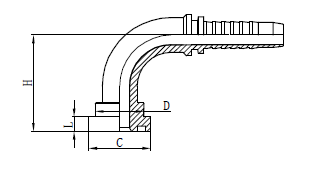

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87692-08-08
1/2"
12
08
31.8
23.9
7.9
49
87692-12-12
3/4"
20
12
41.3
31.7
8.9
63.9
87692-16-16
1"
25
16
47.6
38
9.6
76
87692-20-20
1.1/4"
32
20
54
43.6
10.4
87.9
87692-24-24
1.1/2"
40
24
63.5
50.8
12.7
103
87692-32-32
2"
50
32
79.4
66.5
12.7
124
