6000PSI Higher Flange Fittings
87692-16-12H series is elbow flange long drop fitting which height dimension is required by customers to its special application. Crimped with ferrules, this type is for one or two steel wire braided hoses to make hose assemblies. YH fittings can meet Winner production standard which is well-known in hydraulic field.
Click here to send e-mail!
-
Part no.: 87692-16-12H(90 degrees SAE 6000PSI Flange Fitting For Spiral Hose; Flange Size: 1’’;Hose Size: 3/4’’)
Feature: special dimension at long drop
Advantage: best quality with lower prices

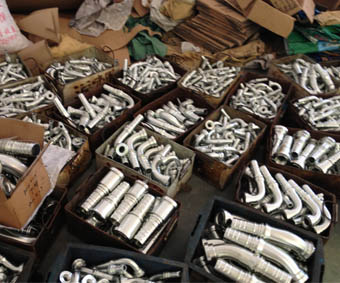

Stock: many items kept as stock products which can shorten delivery time
Sample: less than 5pcs is free of charge
Shipping term: FOB; CIF; CFR; FCA
-

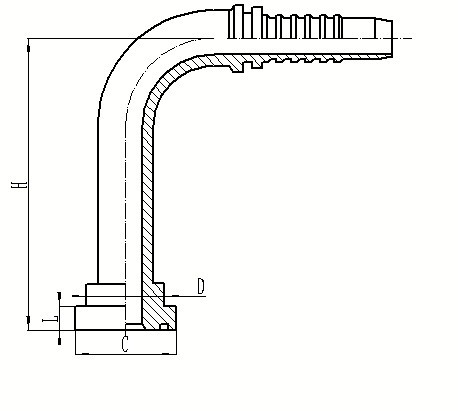

Drawing
Technical Data Table
PART NO.
FLANGE SIZE
HOSE BORE
DIMENSIONS
DN
DASH
C
D
L
H
87692-16-12 H=100
1"
20
12
47.6
38
9.6
100
87692-16-12 H=150
1"
20
12
47.6
38
9.6
150
