Tube Fittings
14212 fittings are ORFS male with o-ring seal for spiral hoses. YH provides complete sizes production of 14212 fittings from 1/4’’ to 2’’. 14212 fittings are manufactured with smooth surface finish, high precision and right tolerance required. All fittings from YH Hydraulic are produced by CNC machines.
Click here to send e-mail!
-
Part no.: 14212(ORFS Male O-ring Seal For Spiral Hose)
Sizes: Sizes from 08 to 24 are commonly manufactured in YH factory
Material: 45 carbon steel; stainless steel; mild steel
Hose types: 4SH, 4SP, R12, R1AT, R2AT, 1SN, 2SN, etc.
Advantage: high precision, right tolerance, smooth surface finish, reasonable prices
-

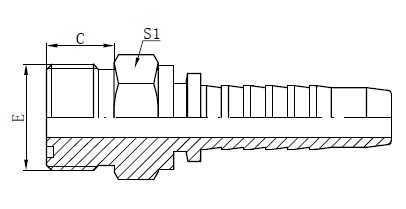

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
O型圈/O-RING
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
(外型X线径)
C
S1
14212-08-08
13/16"X16
12
08
15.98 X1.78
15
22
14212-10-10
1"X14
16
10
19.16 X1.78
16.5
27
14212-12-12
1.3/16"X12
20
12
22.33 X1.78
17
32
14212-16-16
1.7/16"X12
25
16
27.08 X1.78
18.5
41
14212-20-20
1.11/16"X12
32
20
33.43 X1.78
19.5
46
14212-24-24
2"X12
40
24
41.38 X1.78
23.5
55
