ORFS Male O-ring Fitting
14211 fittings are with ORFS male o-ring seal. 14211 fittings are packed well before loaded. YH provides fittings with high durability, high precision and high performance. Fittings from YH Hydraulic are easy for installation. Standard fittings are manufactured and sold for several years. But we can also design with your requirements and produce as per your drawings and samples.
Click here to send e-mail!
-
Part no.: 14211(OFRS Male O-ring Seal)
Sizes: standard sizes are showed on technical data table. If sizes are different from yours, please send your detailed requirements to us.
Related products: 24211(female crimped type); 34211(female non-crimped type)
Production standard: Winner; Eaton standard
Quality control: ISO9001:2008
-

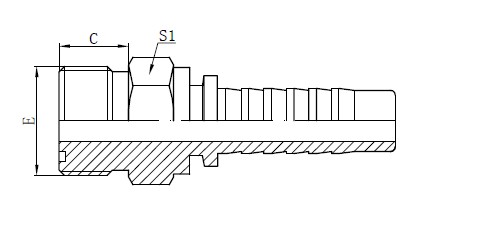

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
O型圈/O-RING
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
(外型X线径)
C
S1
14211-04-04
9/16"X18
6
04
11.21 X1.78
14
17
14211-06-06
11/16"X16
10
06
12.81 X1.78
14
19
14211-08-08
13/16"X16
12
08
15.98 X1.78
15
22
14211-10-10
1"X14
16
10
19.16 X1.78
16.5
27
14211-12-12
1.3/16"X12
20
12
22.33 X1.78
17
32
14211-16-16
1.7/16"X12
25
16
27.08 X1.78
18.5
41
14211-20-20
1.11/16"X12
32
20
33.43 X1.78
19.5
46
14211-24-24
2"X12
40
24
41.38 X1.78
23.5
55
