Non-crimped Female Fittings
34211 series fittings are ORFS female flat seat and non-crimped types. YH’s production covers most international threads and sizes of hydraulic fittings. Fittings have high precision, smooth surface finish and required tolerance. We ensure best quality products sold to customer so packing well is also important to protect from collision during delivery. We pack fittings in order in cartons with plastic cover.
-
Part no.: 34211(ORFS Female Flat Seat; Non-crimped type)
Application: 34211 series fittings are used for one or two wire braided hoses; 34212 series are suitable for one, two or four wire braided hoses.
Sizes: from 1/4’’ to 1.1/2’’ are popular selling items.
Color: Yellow; White; Silver; Blue
Coating: Zinc plated; Chrome plated; Painting
-

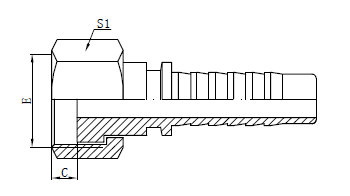

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
34211-04-04
9/16"x18
6
04
11
19
34211-06-06
11/16"x16
6
06
10
22
34211-10-10
1"x14
16
10
13.5
30
34211-12-12
1.3/16"x12
20
12
15
36
34211-16-16
1.11/16"x12
25
16
15
41
34211-24-24
2"x12
40
24
19
60
