ORFS Female Flat Seat
24211 series are ORFS female flat seat crimped type fittings which are widely acceptable in YH Hydraulic. 34211 series are with same application as 24211 series but 34211 are non-crimped types. Fittings are manufactured by CNC machines and the production needs more than 10 steps. YH control right dimensions and demands of each step.
Click here to send e-mail!
-
Part no.: 24211(ORFS Female Flat Seat Crimp Type)
Related products: 34211(Non-crimped type) with same application; 24241(45 degrees elbow); 24291(90 degrees elbow)
Thread Types: ORFS; JIC; NPT; BSP; BSPT; JIS; Metric, etc
Origin: Ningbo, China
Currency: USD; RMB; EURO; other popular ones
Samples: stock products can be for samples
-

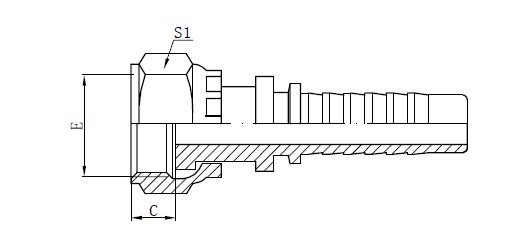

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
24211-08-08
13/16"X16
12
8
12
27
24211-20-20
1.11/16"X12
32
20
15.5
50
