Double Hex Connector
26712D fittings are JIC female 74 degrees cone seat with double hexagon for spiral hoses. 26712D are also ok with one or two wire braided hydraulic hoses such as R1AT, R2AT, 1SN, 2SN, etc. 26712D fittings are of good quality in YH Hydraulic which goal is providing best quality to customers as we can. If any interested products, please contact us.
Click here to send e-mail!
-
Part no.: 26712D(JIC Female 74°Cone Seat With Double Hexagon For Spiral Hose)
Thread types: metric, JIS, BSP, BSPT, ORFS, JIC , NPSM, NPT, etc.
Surface treatment: Trivalent Silver Zinc, Trivalent Yellow Zinc, Hexavalent Yellow Zinc, Chrome Plate, Electric-polish etc
Payment term: T/T or L/C at sight
Shipping term: FOB, CIF, CFR, etc.
-

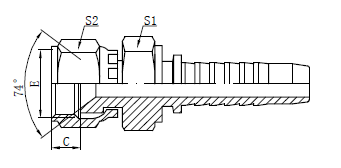

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
26712D-08-08
3/4"X16
12
08
11
24
24
26712D-10-10
7/8"X14
16
10
11
27
27
26712D-12-12
1.1/16"X12
20
12
13.5
32
32
26712D-16-16
1.5/16"X12
25
16
14.5
41
41
26712D-20-20
1.5/8"X12
32
20
15.5
50
50
26712D-24-24
1.7/8"X12
40
24
18.5
55
55
26712D-32-32
2.1/2"X12
50
32
24.5
70
70
