SAE Female Fitting
27812 fittings are SAE female 90 degrees cone seat for one, two or spiral hydraulic hoses. SAE is an American thread type which is also applied in hydraulic field commonly. YH is a professional and reliable manufacturer so that we can control the right quality with reasonable prices offered. As a supplier, we insist on providing best service to customers to keep a long-term business relationship and friendship.
Click here to send e-mail!
-
Part no.: 27812(SAE Female 90°Cone Seat For Spiral Hose)
Material control: control strictly of the good quality material using meeting international requested standards.
Production line test: Our quality control department will inspect machines and lines at fixed period.
Finished product inspection: 10% of the order will be tested before products packed and loaded to ensure right products delivered.
Sales points: we insist on selling not only good quality products but also nice service.
-

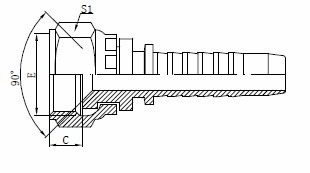

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
27812-08-08
3/4"X16
12
08
11
24
27812-10-10
7/8"X14
16
10
11
27
27812-12-12
1.1/16"X12
20
12
13.5
32
