NPSM Female Hose Fitting
21611 series fittings are NPSM female 60 degrees cone. NPSM is a National Standard Free-Fitting Straight Mechanical Pipe Thread which piping convention refers to pipe thread that is not tapered. And NPSM pipe threads do not seal as effectively as NPT threads. Please make sure which thread type is required.
Click here to send e-mail!
-
Part no.: 21611(NPSM Female 60 Degrees Cone)
Material: 45 carbon steel; mild steel; stainless steel; required metals
Port: Ningbo(nearest); Shanghai; Guangzhou
Shipping term: FOB; CIF; FCA; CRF
Samples policy: less than 5 pieces is free of charge for checking our quality
Our goal: providing good quality products; trying to serve better.
-

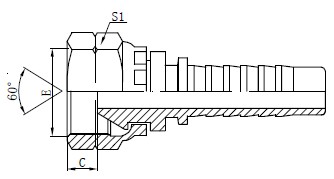

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
21611-04-04
1/4"x18
6
04
5.5
19
21611-06-06
3/8"x18
10
06
6.5
22
21611-08-08
1/2"x14
12
08
8
27
21611-12-12
3/4"x14
20
12
11.5
32
21611-16-16
1"x11.5
25
16
11.5
41
21611-20-20
1.1/4"x11.5
32
20
12
50
21611-24-24
1.1/2"x11.5
40
24
13
55
21611-32-32
2"x11.5
50
32
16
70
