JIC Female Hydraulic Fitting
Click here to send e-mail!
-
Part no.: 26742(45 Degrees JIC Female 74 Degrees Cone Seat For Spiral Hose)
Sizes: from 1/2’’ to 2’’ are commonly manufactured in our factory(please check with technical data sheet); other sizes are also ok but please email to us.
Advantage: high precision manufactured; Required tolerance controlled; Well surface treatment
Application: widely used in hydraulic field after crimped with hoses and fittings
Package: fittings in order when packed in each carbon with plastic cover, then pack cartons in wooden boxes.
-

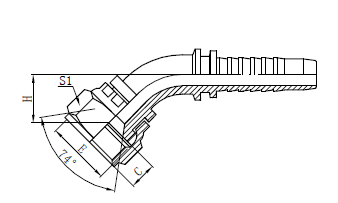

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
26742-08-08
3/4"X16
12
08
11
24
13.5
26742-10-10
7/8"X14
16
10
11
27
25.3
26742-12-12
1.1/16"X12
20
12
13.5
32
30
26742-16-16
1.5/16"X12
25
16
14.5
41
31.5
26742-20-20
1.5/8"X12
32
20
24.5
50
36.6
26742-24-24
1.7/8"X12
40
24
19.5
60
41.6
26742-32-32
2.1/2"X12
50
32
24.5
75
66
