Crimped Hydraulic Fittings
Click here to send e-mail!
-
Part no.: 24212(ORFS Female Flat Seat For Spiral Hose: Crimped Type)
Materials: available for carbon steel, stainless steel, brass, alloy steel, etc
Color options: white, yellow, nickel, colorful
Coating options: white zinc plated, yellow zinc plated, chrome plated, nickel plated, etc.
Custom-orientated service: available for fittings samples or drawings
-

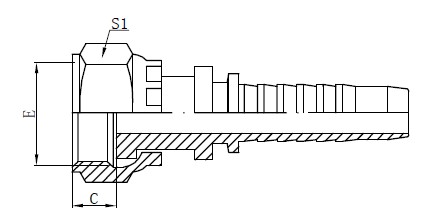

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
24212-08-08
13/16"X16
12
08
12
27
24212-20-20
1.11/16"X12
32
20
15.5
50
