Non-crimped ORFS Coupling
34241 fittings are 45 degrees ORFS female flat seat and non crimped types. ORFS is short for O-Ring Face Seal which uses an o-ring(SAE J515) in a groove on the male face side. This is mated to flat face without an o-ring on the female swivel side, forming a seal without metal deformation much the same as an SAE four bolt split flange connection without the bolts.
Click here to send e-mail!
-
Part no.: 34241(45°ORFS Female Flat Seat: non-crimped type)
Following hoses can be selected:
SAE 100R2AT Hydraulic Hose(R2)
SAE 100R16 Hydraulic Hose(R16)
SAE 100R17 Hydraulic Hose(R17)
Tough Cover Hydraulic Hose(KT)
Hydraulic Jack Hose(HJK)
SAE 100R1AT Hydraulic Hose(R1)
SAE 100R3 General Purpose Hose(R3)
-

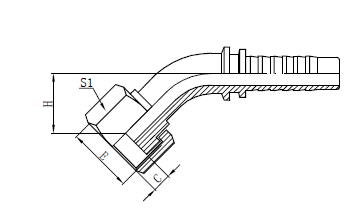

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
34241-04-04
9/16"x18
6
04
11
19
20.8
34241-06-06
11/16"x16
10
06
10
22
23.7
34241-10-08
1"x14
13
08
13.5
30
23.3
34241-12-08
1.3/16"x12
13
08
13
36
23.5
34241-12-10
1.3/16"x12
16
10
13
36
19.5
34241-10-10
1"x14
16
10
13.5
30
19
34241-12-12
1.3/16"x12
20
12
13
36
27.2
34241-16-12
1.7/16"x12
20
12
14
41
29.6
34241-16-16
1.7/16"x12
25
16
14
41
29.7
34241-24-24
2"x12
40
24
19
60
37.7
