Swaged Metric Fittings
30511one piece are metric female 24 degrees cone heavy type with O-ring integral fittings for one or two wire braided hydraulic hoses. 30511one piece fittings can be crimped with related hoses directly. One piece fittings are finished with zinc plated to customers’ requirements. Standard sizes are showed below on technical data table. Different sizes are acceptable in our factory.
Click here to send e-mail!
-
Part no.: 30511one piece(Metric Female 24°Cone H.T. With O-ring Integral Fitting For One or Two-Wire Hose)
Related types: 30511 fittings; 00110 ferrules or 00210 ferrules; R1AT hoses; R2AT hoses; R1A hoses; R2A hoses; 1SN hoses, 2SN hoses, etc.
Equipment related; CNC machines, automatic punch; raw material cutter; ferrule(nut) crimping machine, etc
Coating: white zinc-plated; yellow zinc-plated; chrome plated; nickel plated
-

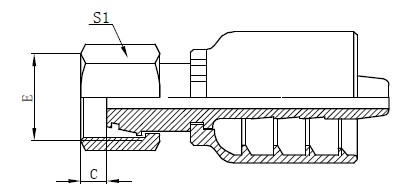

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE O.D.
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
30511-16-04one piece
M16X1.5
6
04
8
2
22
30511-18-04one piece
M18X1.5
6
04
10
2
24
30511-20-05one piece
M20X1.5
8
05
12
3
27
30511-20-06one piece
M20X1.5
10
06
12
3
27
30511-22-06one piece
M22X1.5
10
06
14
3
27
30511-24-08one piece
M24X1.5
12
08
16
3
30
30511-30-10one piece
M30X2
16
10
20
3.5
36
30511-36-12one piece
M36X2
20
12
25
3
41
30511-36-14one piece
M36X2
22
14
25
3
41
30511-42-16one piece
M42X2
25
16
30
5
50
30511-52-20one piece
M52X2
32
20
38
6.5
60
30511-52-24one piece
M52X2
40
24
38
6.5
60
