Stainless Steel Hydraulic Fittings
87611one piece fittings are SAE flange 6000PSI for one or two-wire integral fittings. Sizes from 08 to 32 are involved in YH production daily. 87611one piece fittings are 87611 fittings crimped with 00210 or 00110 ferrules by ferrule crimping machines. Good quality materials are put into production so that good quality products can be ensured. One piece fittings are all manufactured by CNC machine to control the high precision demands.
Click here to send e-mail!
-
Part no.: 87611one piece(SAE Flange 6000PSI For One Or Two-wire Integral Fitting)
Material: fittings are coming in 45 carbon steel; ferrules are in mild steel(20 carbon steel)
Ferrule types: 00210(ferrule for two wire braided hose); 00110(ferrules for one wire braided hose); 03310(ferrules for one or two wire braided hose)
Samples: less than two sets is free of charge for checking the quality
-

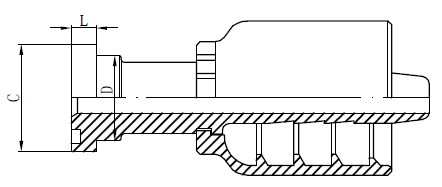

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87611-08-08one piece
1/2"
12
08
31.8
23.9
7.9
87611-12-12one piece
3/4"
20
12
41.3
31.7
8.9
87611-16-16one piece
1"
25
16
47.6
38
9.6
87611-20-20one piece
1.1/4"
32
20
54
43.6
10.4
87611-24-24one piece
1.1/2"
40
24
63.5
50.8
12.7
87611-32-32one piece
2"
50
32
79.4
66.5
12.7
