BSP Female One Piece Fitting
22641one piece fittings are 45 degrees BSP female 60 degrees cone integral types. YH Hydraulic offers the convenience of one-piece fittings while solving a problem inherent to such designs. In other one-piece designs, the ferrule rotates against the fitting detail, creating particulates. Fittings and ferrules are all manufactured by CNC machines to ensure the exact sizes and right pressure.
Click here to send e-mail!
-
Part no.: 22641one piece(45°BSP female 60°cone integral fitting)
Types: fittings with or with out ferrules crimped are acceptable for selling
Sizes: 1/4’’ to 1.1/2’’ are available; others need your requirements.
Custom-orientated: OEM service is ok in YH Hydraulic
Delivery time: less than 7 days for stock products; less than 25 days for an order no matter big or small.
-

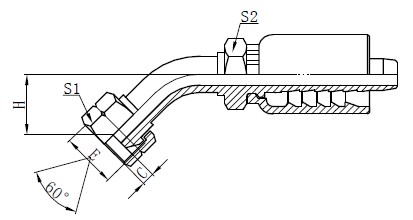

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
H
22641-04-04one piece
G1/4"X19
6
04
5.5
17
17
15.2
22641-06-06one piece
G3/8"X19
10
06
6
22
19
17.5
22641-08-08one piece
G1/2"X14
12
08
7
27
22
19
22641-10-10one piece
G5/8"X14
16
10
8.5
27
27
28
22641-12-12one piece
G3/4"X14
20
12
9
32
32
29
22641-16-16one piece
G1"X11
25
16
11
38
38
34
22641-20-20one piece
G1.1/4"X11
32
20
11
50
50
39
22641-24-24one piece
G1.1/2"X11
40
24
12
55
55
48.2
