DKOL Integral Fittings
30491one piece is 90 degrees metric female 24 degrees cone light type with o-ring integral fitting for one or two steel wire braided hydraulic hoses. YH specialize in producing DK, DKOS, DKOL, and DKI fittings for more than 10 years. Fittings are finished by zinc coating to protect from oxidization.
Click here to send e-mail!
-
Part no.: 30491 one piece(90 degrees metric female 24 degrees cone light type with o-ring one or two wire integral fitting)
Application: Integral fittings equipped with hydraulic to make hose assemblies directly
Material: Ferrule with mild steel; fitting with 45 carbon steel
Sizes: introduced on technical data meet most hoses demands
Color: white, yellow, silver, blue(available)
-

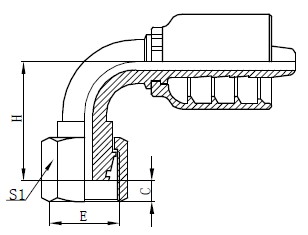

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE O.D.
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
30491-14-04one piece
M14X1.5
6
04
8
2
19
36
30491-16-05one piece
M16X1.5
8
05
10
2
22
37
30491-18-06one piece
M18X1.5
10
06
12
2.5
24
42
30491-22-08one piece
M22X1.5
12
08
15
3
27
45
30491-27-10one piece
M27X1.5
16
10
18
2.5
32
55
30491-30-12one piece
M30X2
20
12
22
3.5
36
64
30491-36-16one piece
M36X2
25
16
28
4.5
41
67
30491-45-20one piece
M45X2
32
20
35
5
55
76
30491-52-24one piece
M52X2
40
24
42
6
60
88
