Galvanized Flare Fittings
26711one piece series are with thread of JIC female 74 degrees cone seat. 26711one piece fittings are 26711 fittings crimped with ferrules by crimping machines. Fittings and ferrules are precisely manufactured to avoid leaking when crimped with hydraulic hoses. YH are selling best prices and best quality to customers.
Click here to send e-mail!
-
Part no.: 26711one piece(JIC female 74 degrees cone seat integral fitting)
Material: 45 carbon steel(Fitting); 20 carbon steel(ferrule); others acceptable
Color: Yellow; White; Silver
Surface treatment: Zinc-plated; Chrome plated
Delivery time: within 10 days
Currency: USD; RMB; EURO; other popular currency available
-

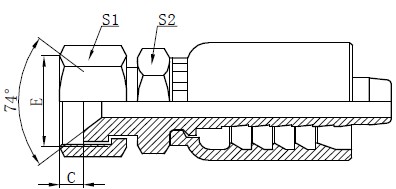

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
26711-04-04one piece
7/16"X20
6
04
9
17
17
26711-06-06one piece
9/16"X18
10
06
10
19
19
26711-08-08one piece
3/4"X16
12
08
11
24
22
26711-10-10one piece
7/8"X14
16
08
12
27
27
26711-12-12one piece
1.1/16"X12
20
12
13
32
32
26711-16-16one piece
1.5/16"X12
25
16
14
38
38
26711-20-20one piece
1.5/8"X12
32
20
15
50
50
26711-24-24one piece
1.7/8"X12
40
24
19
55
55
