  • Part no.: 87392one piece(90°SAE Flange 3000PSI For Spiral Hose Integral Fitting)


    Types: Straight flange fittings; elbow flange fittings; integral flange fittings; long drop flange fittings


    Standard: Winner; Logo is “YH”; For others, please contact our sales


    Pressure: 3000PSI; 6000PSI; 9000PSI


    Delivery time: Within 10 days because of many stock items


    Currency: USD; Euro; RMB; other popular ones can be accepted by Chinese banks

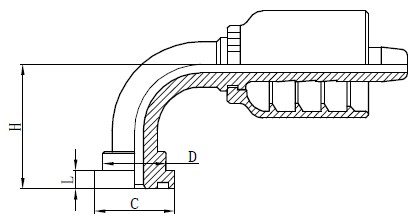

  • Drawing



    Technical Data Table

    代号

    PART NO.

    法兰尺寸FLANGE SIZE

    胶管HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    D

    L

    H

    87392-08-08one piece

    1/2"

    12

    08

    30.2

    23.9

    7

    47

    87392-12-12one piece

    3/4"

    20

    12

    38.1

    31.7

    7

    59.2

    87392-16-16one piece

    1"

    25

    16

    44.4

    38

    8.2

    73.5

    87392-20-20one piece

    1.1/4"

    32

    20

    50.8

    43.2

    8.2

    83.5

    87392-24-24one piece

    1.1/2"

    40

    24

    60.3

    50.3

    8.2

    97.2

    87392-32-32one piece

    2"

    50

    32

    71.4

    62.2

    9.8

    118
