CAT Flange Fitting
87342one piece are 45 degrees SAE flange 3000PSI for four wire braided hydraulic hoses such as 4SH, 4SP, R12, etc. 87342one piece fittings can be crimped with hydraulic hoses directly. Complete sizes production is involved in YH Hydraulic daily. YH can ensure good quality and lower prices offered to customers.
Click here to send e-mail!
-
Part no.: 87342one piece(45°SAE Flange 3000PSI For Four Wire Integral Fitting)
Sizes: 1/2’’ to 2’’ are available; 1/4’’, 5/16’’ and 3/8’’ are also available for selling
Material: 45 carbon steel; 20 carbon steel; stainless steel(SS304 and SS316)
Samples: less than 5pcs is free of charge for checking quality.
Delivery port: Ningbo(nearest); Shanghai, Guangzhou and others are acceptable
-

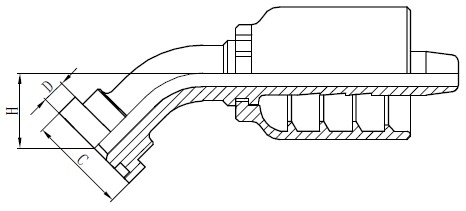

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87342-08-08one piece
1/2"
12
08
30.2
23.9
7
23
87342-12-12one piece
3/4"
20
12
38.1
31.7
7
29
87342-16-16one piece
1"
25
16
44.4
38
8.2
30
87342-20-20one piece
1.1/4"
32
20
50.8
43.2
8.2
34
87342-24-24one piece
1.1/2"
40
24
60.3
50.3
8.2
42
87342-32-32one piece
2"
50
32
71.4
62.2
9.8
49
